General - HL-380

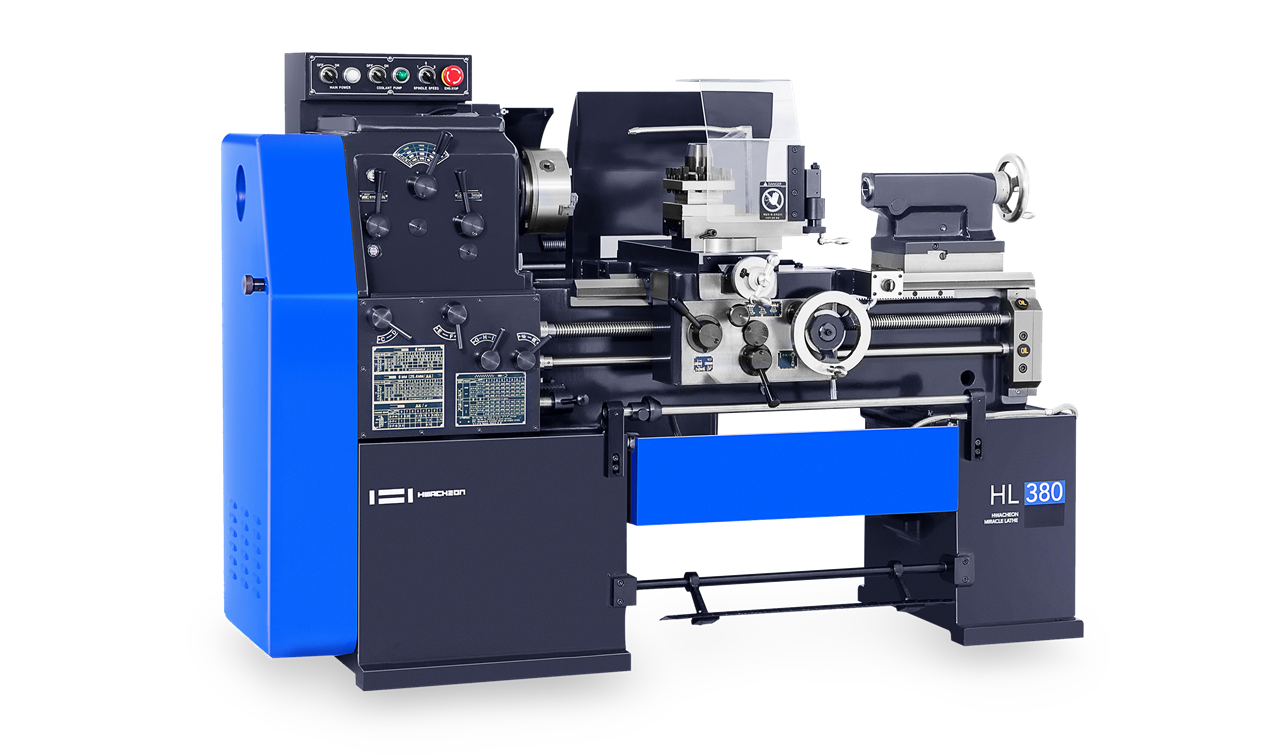

HL-380
Manual Lathe
HL-380 is a manual lathe that has been trusted and loved for a long time based on precision and best performance.
HL-380 provides a product line-up and optional specifications that can respond to various customer needs, and maximizes user convenience for easy and convenient use.
Machine Specification
| Item | HL-380 x 750 | |
|---|---|---|
| Capacity | ||
| Swing over bed | mm | Ø400 |
| Swing over Saddle | mm | Ø238 |
| Max. Cutting Dia over Bed | mm | Ø400 |
| Distance Between Centers | mm | 750 |
| Cutting Length | mm | 720 |
| Max. Loading Capacity | Kgf | 100 (7” 3 Jaw Scroll Chuck) |
| Spindle | ||
| Spindle Bore Diameter | mm | Ø52 |
| Type of Spindle Nose | ASA | A2-5 |
| Number of spindle speed | - | 12 Step |
| Max Spindle Speed | rpm | 45 ∼ 1,800 |
| Spindle Taper | - | No.6 |
| Spindle Center Taper | - | No.4 |
| Spindle Motor (4p / 8p) |
kW | 3 / 2 |
| Carriage | ||
| No. of Feed Change | - | 32 Step |
| Range of X-Axis Feeds | mm/rev | 0.06 ~ 0.84 |
| Range of Y-Axis Feeds | mm/rev | 0.014 ~ 0.192 |
| Range of Cross Feeds (X-Axis) |
mm | 250 |
| Cross Slide Travel (Y-Axis) |
mm | 110 |
| Bite Holder Size (L x W) | mm | □20 |
| Screw · Cutting | ||
| Lead Screw (Dia. X Pitch) |
mm | Ø36 × 6 |
| Inch Threads | TPI | 4 ~ 56 |
| Metric Threads | mm | 0.5 ∼ 7 |
| D.P Threads | D.P | 8 ~ 56 |
| Module Threads | Module | 0.5 ∼ 3.5 |
| Tailstock | ||
| Tailstock Travel | mm | 150 |
| Tailstock Center Taper | MT | No.4 |
| Bed | ||
| Bed Width | mm | 300 |
| Bed Length | mm | 1,600 |
| Tank Capacity | ||
| Coolant | ℓ | 20 |
| Coolant Motor | W | 100 - 2P |
| Power Source | ||
| Power Capacity | kVA | 6 |
| Power Specification | - | 380V, 60Hz / 220V, 60Hz |
| Machine Size | ||
| Height | mm | 1,350 |
| Floor Space (L x W) |
mm | 1,960 x 1,000 |
| Weight | Kgf | 1,240 |
-
