Artificial Intelligence Smart Machine for Small Steel Mold

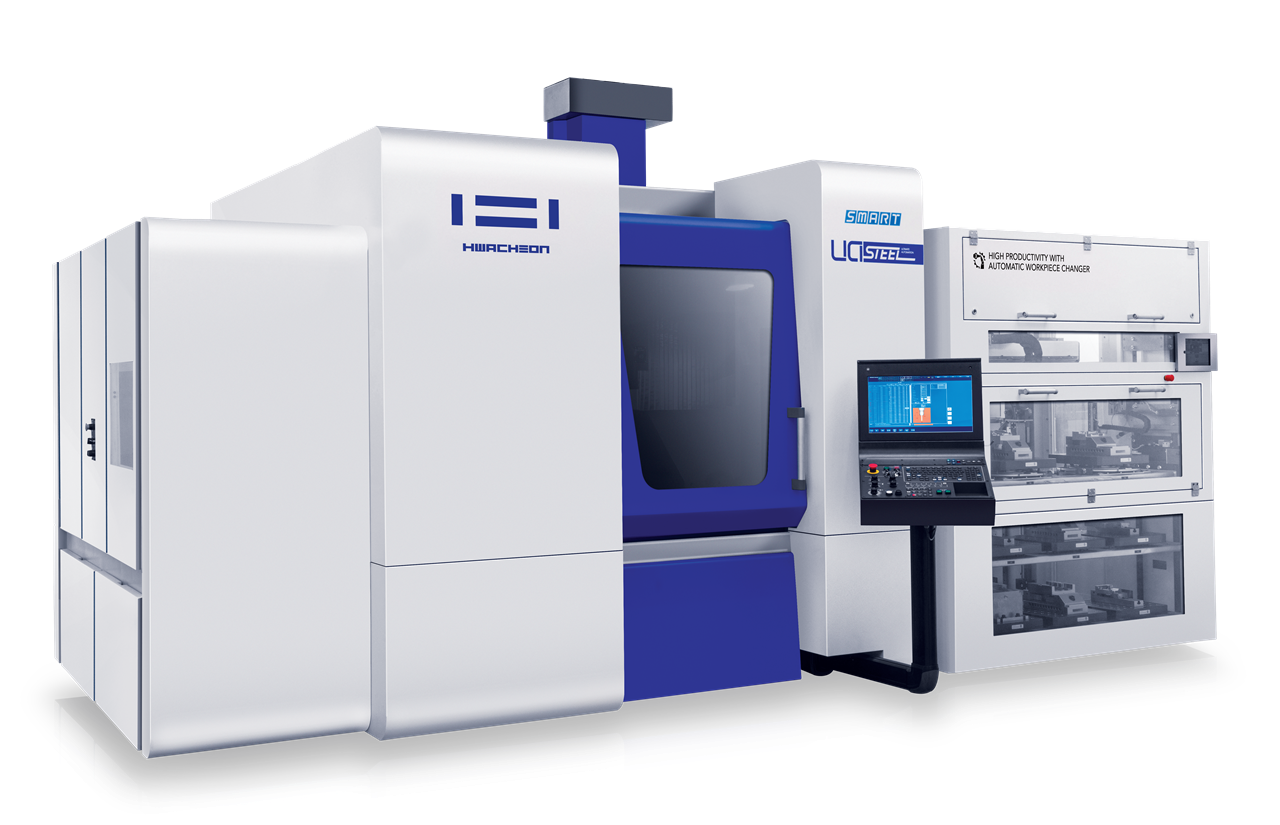

SMART Ua STEEL is a ‘Smart Machine’ optimized for machining small steel mold.

The world’s first AI ‘Smart Machine’ is integrated with Hwacheon’s future convergence software, machining know-how and automation technology. Simply inputting the CAD data allows the machine to automatically do CAM calculation and machining which dramatically increases the productivity of the user.

Cooling of the spindle and frames minimizes thermal deformation to ensure high precision during long-time machining. Hwacheon software installed on the machine improves productivity and precision, and always provides the same machining quality.


Machine Specification
※ CTS : Coolant Through Spindle
Item SMART Ua STEEL
12K 14K 20K 24K
Travel
X-axis Stroke mm 1,050 1,050 1,050 1,050
Y-axis Stroke mm 600 600 600 600
Z-axis Stroke mm 550 550 550 550
Distance from Table Surface
to Spindle Gauge Plane
mm 150 ~ 700 150 ~ 700 150 ~ 700 150 ~ 700
Distance between columns mm 1,076 1,076 1,076 1,076
Table
Working Surface mm 1,200 x 600 1,200 x 600 1,200 x 600 1,200 x 600
Table Loading Capacity kgf 800
[Magnetic Table : 700]
800
[Magnetic Table : 700]
800
[Magnetic Table : 700]
800
[Magnetic Table : 700]
Table Surface Configuration
(T slots W x P – No. of slots)
mm 18 x 100 / 5ea 18 x 100 / 5ea 18 x 100 / 5ea 18 x 100 / 5ea
Spindle
Max Spindle Speed rpm 12,000 14,000 20,000 24,000
Spindle Motor kW 37 / 18.5 37 / 22 37 / 18.5 37 / 18.5
Type of Spindle Taper Hole - ISO#40,
7/24 Taper (BBT-40)
ISO#40,
7/24 Taper (BBT-40)
ISO#40,
7/24 Taper (BBT-40)
ISO#40,
7/24 Taper (BBT-40)
Spindle Bearing Inner Diameter mm Ø70 Ø70 Ø70 Ø70
Type of Spindle - Direct-Coupled Direct-Coupled Direct-Coupled Direct-Coupled
Method of Spindle Lubrication - Oil Jet Oil Jet Oil Jet Oil Jet
Method of Spindle Cooling - Jacket Cooling
(Oil Cooler)
Jacket Cooling
(Oil Cooler)
Jacket Cooling
(Oil Cooler)
Jacket Cooling
(Oil Cooler)
Type of Coolant - Spindle Oil
[
ISO VG 10]

Feedrate
Rapid Traverse
(X / Y / Z)
m/min 36 / 36 / 36 36 / 36 / 36 36 / 36 / 36 36 / 36 / 36
Motor
Servo Motor
(X / Y / Z)
kW 4 / 4 / 7 4 / 4 / 7 4 / 4 / 7 4 / 4 / 7
Coolant Motor
(Spindle / Coolant Gun)
kW 0.75 / 0.75 0.75 / 0.75 0.75 / 0.75 0.75 / 0.75
Spindle Cooler (50/60Hz)
(50 / 60 Hz)
kW 5 / 5.6 5 / 5.6 5 / 5.6 5 / 5.6
ATC
Type of Tool Shank - MAS-403 BBT-40
(Opt.: CAT-40 / SK-40 / HSK-A63)
MAS-403 BBT-40
(Opt.: CAT-40 / SK-40 / HSK-A63)
MAS-403 BBT-40
(Opt.: CAT-40 / SK-40 / HSK-A63)
HSK-A63
Type of Pull Stud - MAS P40T-1 (45°) MAS P40T-1 (45°) MAS P40T-1 (45°) MAS P40T-1 (45°)
Tool Storage Capacity ea 120 120 120 120
Max. Tool Diameter
(with / without Adjacent Tools)
mm Ø90 / Ø170 Ø90 / Ø170 Ø90 / Ø170 Ø90 / Ø170
Max. Tool Length mm 300 300 300 300
Max. Tool Weight Kgf 8 8 8 8
Method of Tool Selection - Fixed Address Fixed Address Fixed Address Fixed Address
Power Sources
Electric Power Supply kVA 55 55 55 55
Compressed Air Supply
(Pressure x Consumption)
- 0.5~0.7MPa
x 690Nℓ/min
0.5~0.7MPa
x 690Nℓ/min
0.5~0.7MPa
x 690Nℓ/min
0.5~0.7MPa
x 690Nℓ/min
Tank Capacity
Spindle Coolant 30 30 30 30
Lubrication 12 12 12 12
Coolant 350 350 350 350
Machine Size
Height mm 3,170 3,170 3,170 3,170
Floor Space
(L x W)
mm 5,730 x 5,320 5,730 x 5,320 5,730 x 5,320 5,730 x 5,320
Weight kgf 20,000 20,000 20,000 20,000
NC Controller - H-SMARTS H-SMARTS H-SMARTS H-SMARTS
