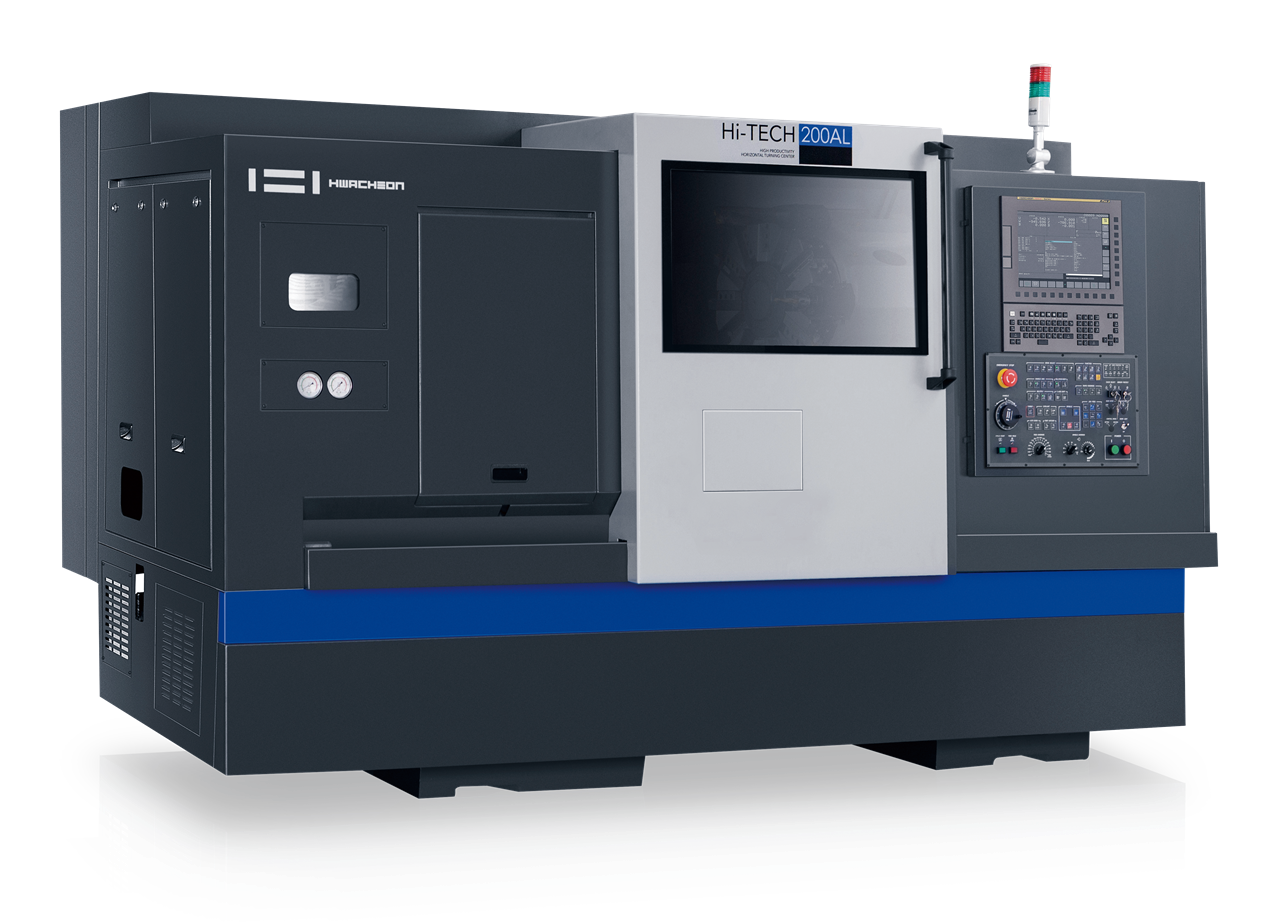

Hi-TECH 200

8” / 10” Heavy Duty Horizontal Turning Center

Hi-TECH 200 provides a rigid and stable heavy duty cutting based on a highly rigid box-way feed structure designed with an air-floating system and bed structure while maintains high precision even during long-term processing by minimizing thermal displacement

Hwacheon software installed on the machine improves productivity and precision, provides better machining quality compared to existing machines.

Machine Specification

※ MC : Turnmill

Item		Hi-TECH 200
		Hi-TECH 200A [L]	Hi-TECH 200B [L]	Hi-TECH 200C [L]	Hi-TECH 200A [L] MC	Hi-TECH 200B [L] MC	Hi-TECH 200C [L] MC
		Capacity
Swing over bed	mm	Ø500	Ø500	Ø500	Ø500	Ø500	Ø500
Max Cutting Diameter	mm	Ø350	Ø350	Ø350	Ø325	Ø325	Ø325
Standard Cutting Diameter	mm	Ø210	Ø210	Ø260	Ø220	Ø220	Ø270
Max Cutting Length	mm	401.5 [L : 631.5]	385 [L : 615]	381 [L : 611]	318.5 [L : 548.5]	302 [L : 532]	298 [L : 528]
Chuck Size (Main)	inch	8	10	10	8	10	10
Spindle
Type of Spindle Nose	ASA	A2-6	A2-6	A2-8	A2-6	A2-6	A2-8
Max Spindle Speed	rpm	5,000	3,500	3,500	5,000	3,500	3,500
Through Spindle Hole Diameter	mm	Ø75	Ø75	Ø90	Ø75	Ø75	Ø90
Max Bar Size	mm	Ø51	Ø65	Ø76	Ø51	Ø65	Ø76
Spindle Bearing Inner Diameter	mm	Ø100	Ø100	Ø130	Ø100	Ø100	Ø130
Spindle Motor	kW	18.5 / 15	18.5 / 15	18.5 / 15	18.5 / 15	18.5 / 15	18.5 / 15
Turret
Number of Tool Station	ea	12	12	10	12	12	10
Tool Size (Out Dia x Boring bar size)	mm	□25 ×Ø40	□25 ×Ø40	□25 ×Ø40	□25 ×Ø40	□25 ×Ø40	□25 ×Ø40
Turret Indexing Time	sec/step	0.15	0.15	0.15	0.15	0.15	0.15
Axes
Rapid Traverse (X / Z)	m/min	30 / 30	30 / 30	30 / 30	30 / 30	30 / 30	30 / 30
Max. Stroke (X / Z)	mm	195 / 430 [L : 195 / 660]	195 / 430 [L : 195 / 660]	195 / 430 [L : 195 / 660]	195 / 430 [L : 195 / 660]	195 / 430 [L : 195 / 660]	195 / 430 [L : 195 / 660]
Feed Motor (X / Z)	kW	1.8 / 3.0	1.8 / 3.0	1.8 / 3.0	3.0 / 3.0	3.0 / 3.0	3.0 / 3.0
Tailstock
Quill Diameter	mm	Ø80	Ø80	Ø80	Ø80	Ø80	Ø80
Quill Stroke	mm	100	100	100	100	100	100
Quill Taper	MT	#4	#4	#4	#4	#4	#4
Turnmill (Opt.)
Spindle Motor	kW	-	-	-	3.7 / 2.2	3.7 / 2.2	3.7 / 2.2
Max Spindle Speed	rpm	-	-	-	5,000	5,000	5,000
Max Drill/Tap Size (Drill/Tap)	mm	-	-	-	Ø16 / M12	Ø16 / M12	Ø16 / M12
Min. Index Angle	deg	-	-	-	0.0001	0.0001	0.0001
Tank Capacity
Lubrication	ℓ	12	12	12	12	12	12
Hydraulic	ℓ	11	11	11	11	11	11
Coolant	ℓ	150 [L : 180]	150 [L : 180]	150 [L : 180]	150 [L : 180]	150 [L : 180]	150 [L : 180]
Power Sources
Electrical Power Supply	kVA	30	30	30	30	30	30
Machine Size
Height	mm	1,720	1,720	1,720	1,720	1,720	1,720
Floor Space (L x W)	mm	2,645 x 1,675 [L : 2,875 x 1,675]	2,645 x 1,675 [L : 2,875 x 1,675]	2,645 x 1,675 [L : 2,875 x 1,675]	2,645 x 1,675 [L : 2,875 x 1,675]	2,645 x 1,675 [L : 2,875 x 1,675]	2,645 x 1,675 [L : 2,875 x 1,675]
Weight	Kgf	4,450 [L : 5,050]	4,650 [L : 5,250]	4,650 [L : 5,250]	4,600 [L : 5,200]	4,800 [L : 5,400]	4,800 [L : 5,400]
NC Controller	-	Fanuc 0i-TF Plus	Fanuc 0i-TF Plus	Fanuc 0i-TF Plus	Fanuc 0i-TF Plus	Fanuc 0i-TF Plus	Fanuc 0i-TF Plus
